The 38 Ton Chain Excavator is engineered for powerful performance and reliability in demanding construction and excavation projects. With advanced hydraulic capabilities and robust design, this machine ensures exceptional digging depth, reach, and hauling capacity. Ideal for heavy-duty tasks, this model combines high efficiency with superior maneuverability, providing unparalleled digging and lifting forces for both large-scale and intricate operations

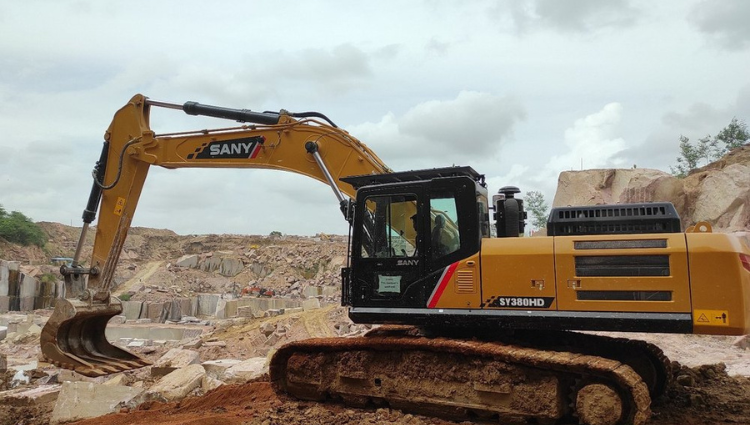

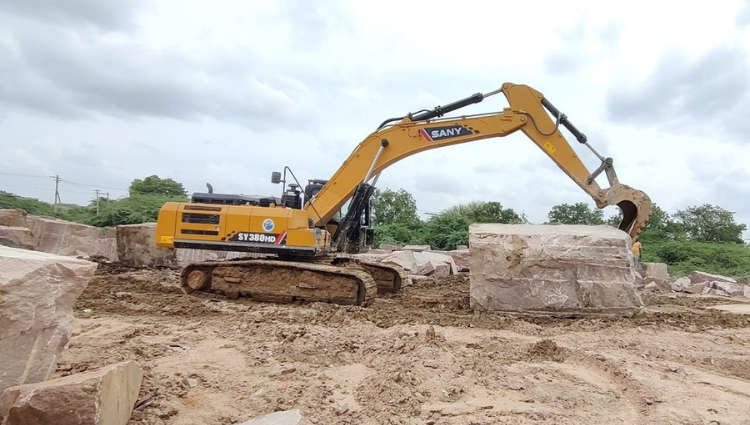

38 Ton Chain Excavator
Qatar
Description
Details
| Min. Ground Clearance: | 550 mm |
| Std. Track Shoe Width: | 600 mm |
| Upper Width: | 3150 mm |
| Bucket Digging Force: | 235 kN |
| Max. Digging Reach: | 10780 mm |
| Undercarriage Overall Length: | 5065 mm |
| Max. Cutting Height: | 9890 mm |
| Arm Digging Force: | 180 kN |
| Overall, Height: | 3320 mm (Cab) |
| Tumbler Distance: | 4140 mm |
| Arm Length: | 2900 mm |
| Max. Torque: | 1080 Nm @ 1500 rpm |
| Max. Boom Length: | 6500 mm |
| overall Dimension: | 11530x3190x3545 mm (LxWxH) |
| Maximum Dumping height: | 6920 mm |
| Maximum Engine Power: | 284 HP (212 kW) @ 2000 rpm |
| Swing Speed Of Platform: | 9.5 rpm rpm |
| Walking Speed: | 5.5 / 3.5 Km/h (Max. High/ Low) km/h |
| Standard bucket capacity: | 1.6 Cum HD/ 1.8 Cum HD/ 2.0 Cum GP/ 2.3 Cum GP/Granite Bucket/3.5 Cum Coal Bucket mm |
| Weight: | 36000 ton |
